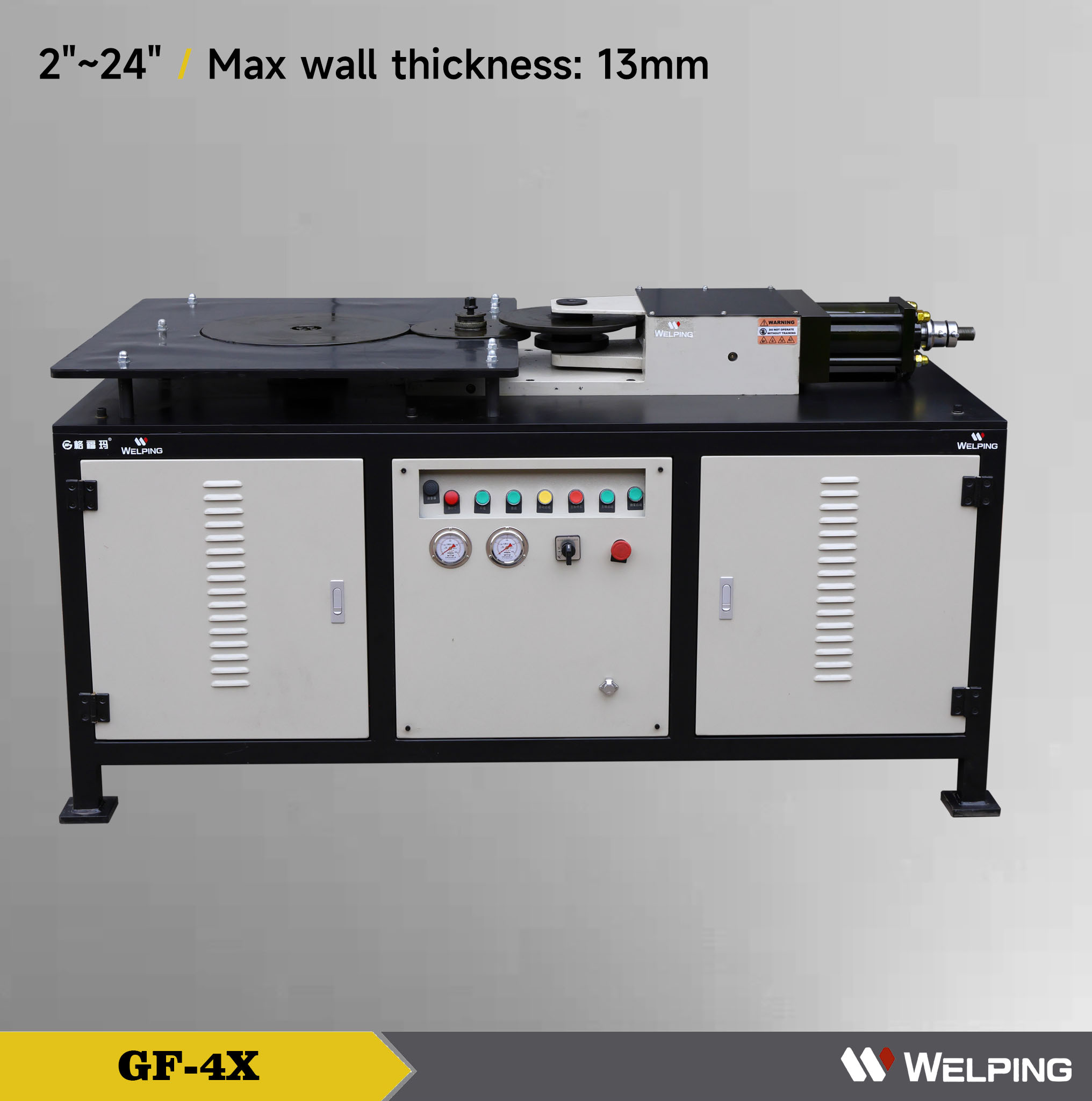

Pipe Fitting Roll Grooving Machine 2″~24″ Max Pipe Wall Thickness 13mm GF-4X
- Model: GF-4X
- Capacity: 2″-24″(Φ60~Φ630)
- Max Wall thickness: 13mm
- Power: 2200W 3Ph
- Speed: 23RPM
- Gross Weight: 1150kgs
- Packing Size: 195*110*120cm
- Warranty: 2 years
GF-4X hydraulic Pipe Fitting Roll Grooving Machine 2″-24″
- GF-4X series pipe fitting roll grooving machines are capable of grooving a wide range of steel and stainless steel pipe fittings —such as equal and reducing tees, 90-degree and 45-degree elbows, with max size up to 24 inch
- Built-in spindle motor and hydraulic station, can automatically complete the grooving work. It is an ideal fabrication tool for pipe fitting manufacturers, at workshops and job sites
- With a patented grooving process and specially engineered grooving components, the machine can reliably control the sealing surface length to meet high-quality standards
- High-quality hydraulic seals and electrical parts from trusted brands guarantee reliable performance and long-lasting operation efficiency
- Precision Grooving: Ensures accurate and consistent grooves for optimal fit and sealing.
Pipe Fitting Roll Grooving Machine Product parameter:
|
Model
|
GF-4X
|
|
Suitable materials
|
Carbon Steel,Stainless Steel
|
|
Capacity
|
for 2″-24″ steel pipe (Φ60~Φ630)
|
|
Power supply
|
380V
|
|
Frequency
|
50HZ /60HZ
|
|
Max wall thickness
|
13mm
|
|
Motor power
|
2200W. 3PH
|
|
Output speed
|
23RPM
|
|
Packing gross weight
|
1150kgs
|
|
Packing size
|
195*110*120cm
|
Pipe Fittings Roll Groover Detail images:
hydraulic groover Standard parts:
|
Item Number
|
Description
|
Net weight
|
|
|
911223 |
Drive roller 1 ½” (φ48)
|
1.50kg
|
|
|
911189
|
Drive roller 2″-2 ½”″ (φ60~φ73)
|
1.60kg
|
|
|
911190
|
Drive roller 3″ -3 ½” (φ89-φ101)
|
2.10kg
|
|
|
911191
|
Drive roller 4″- 5” (φ114~φ141)
|
1.20kg
|
|
|
911192
|
Drive roller 6″ (φ168)
|
3.10kg
|
|
|
911193
|
Drive roller 8″-12″ (φ219-φ325)
|
3.50kg
|
|
|
911116
|
Drive roller 14″-16″ (φ356~φ406)
|
4.00kg
|
|
|
911117
|
Drive roller 18″-24″ (φ457~φ610)
|
2.10kg
|
|
|
Item Number
|
Description
|
Net weight
|
|
|
912083
|
Groove roller 2″- 5” (φ60~φ141)
|
15.0kg
|
|
|
912084
|
Groove roller 6″ (φ168)
|
13.0kg
|
|
|
912085
|
Groove roller 8″-12″ (φ219-φ325)
|
15.0kg
|
|
|
912045
|
Groove roller 14″-16″ (φ356~φ406)
|
15.0kg
|
|
|
912046
|
Groove roller 18″-24″ (φ457~φ610)
|
15.5kg
|
|
|
998026
|
Foot Switch
|
1.50kg
|
|
