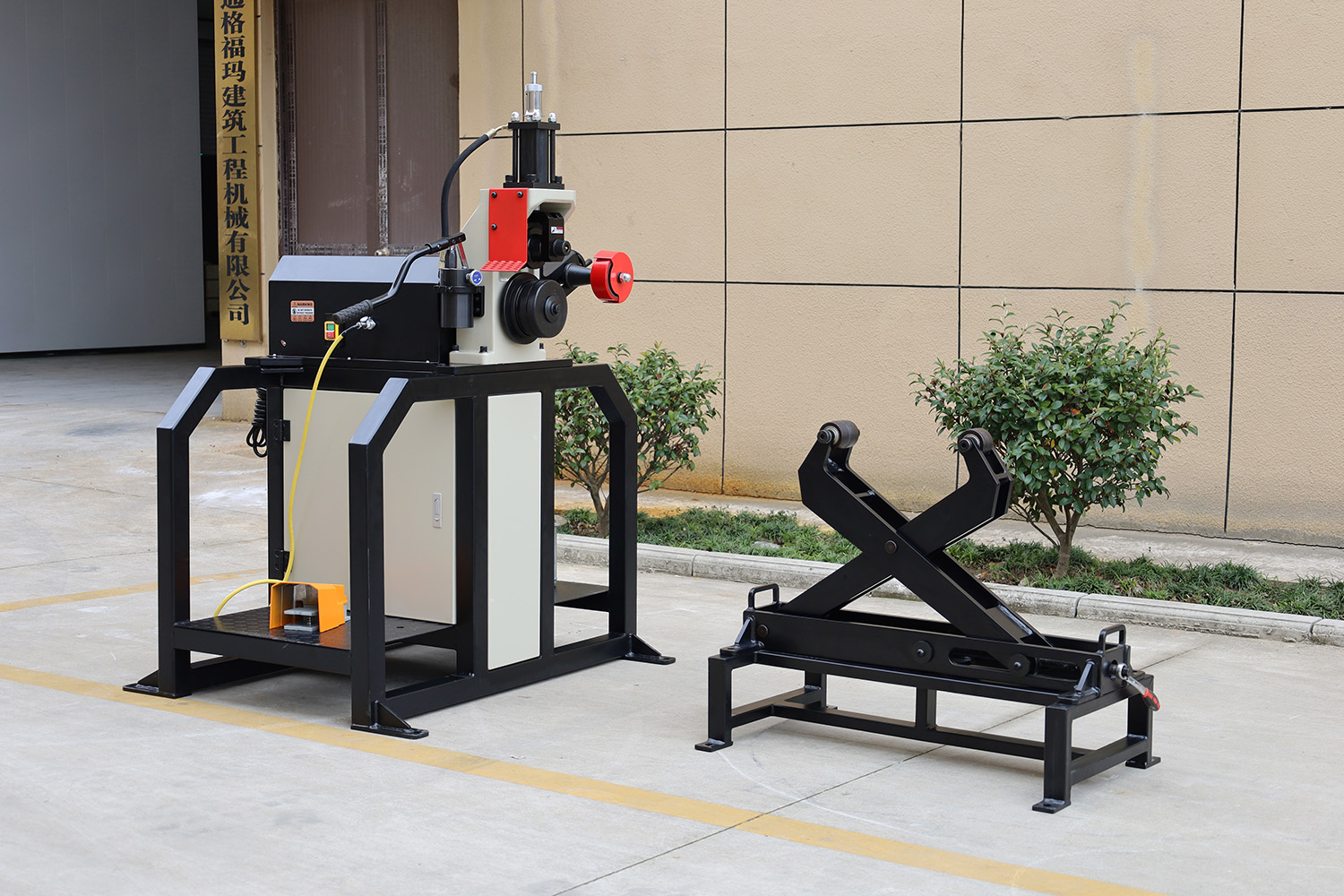

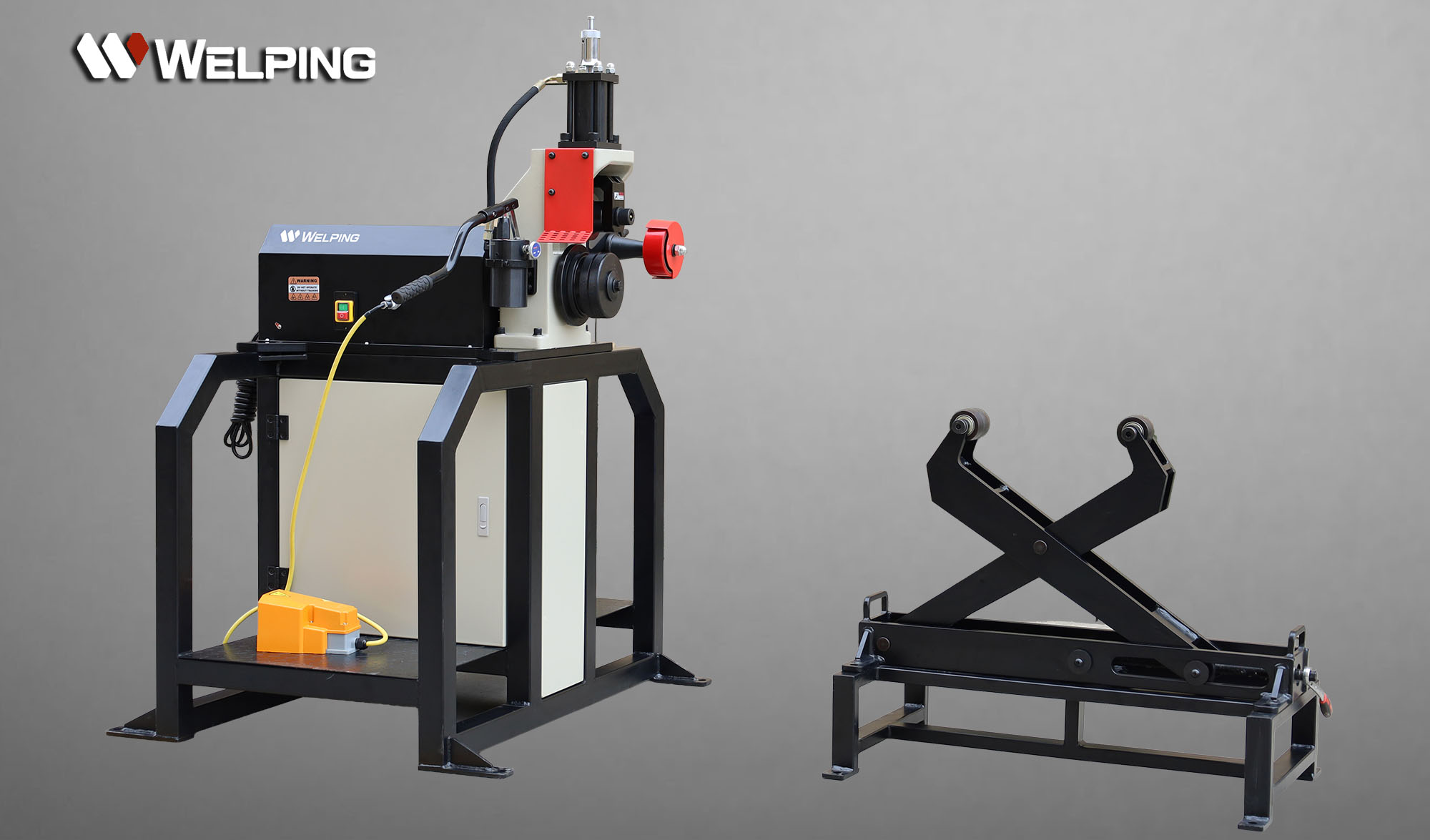

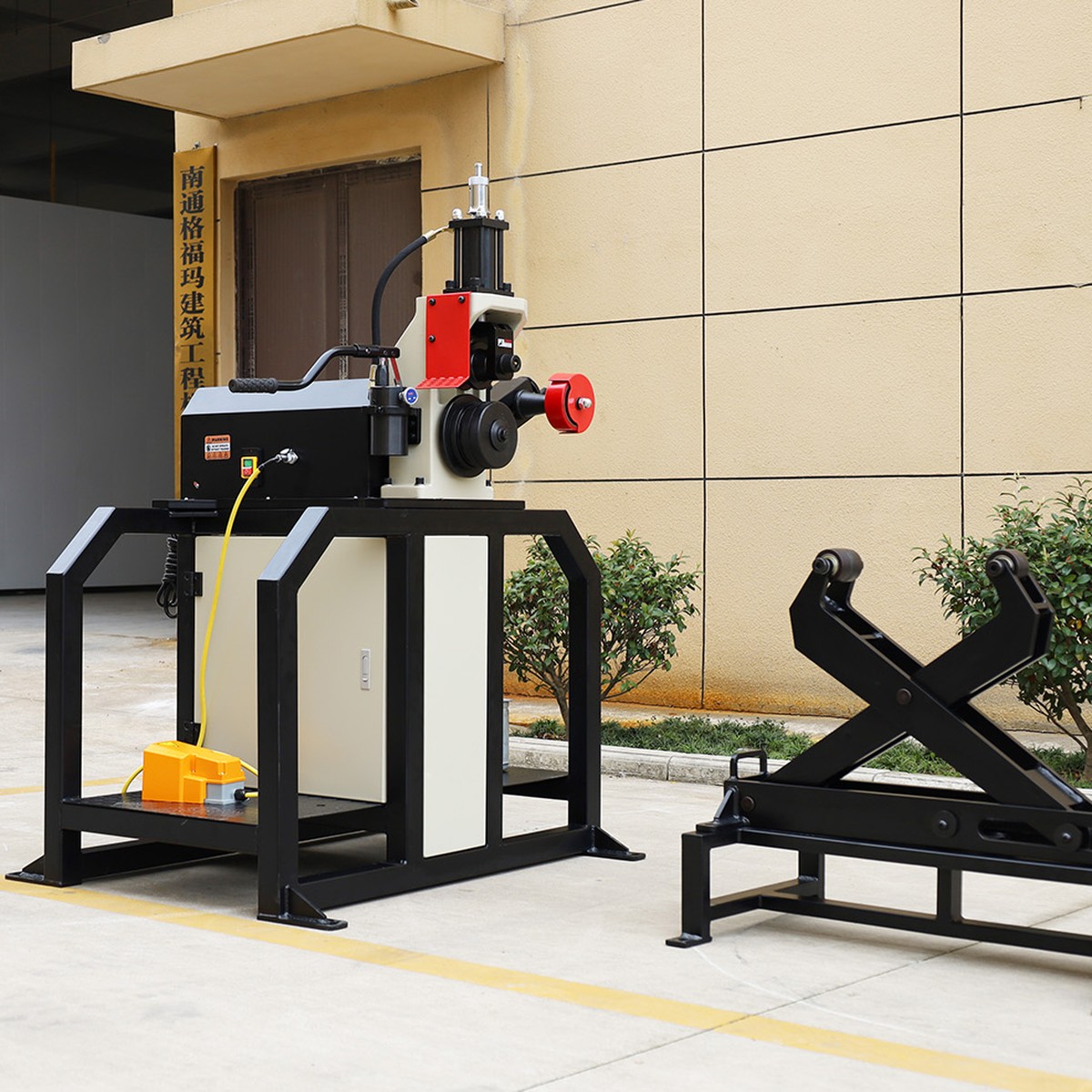

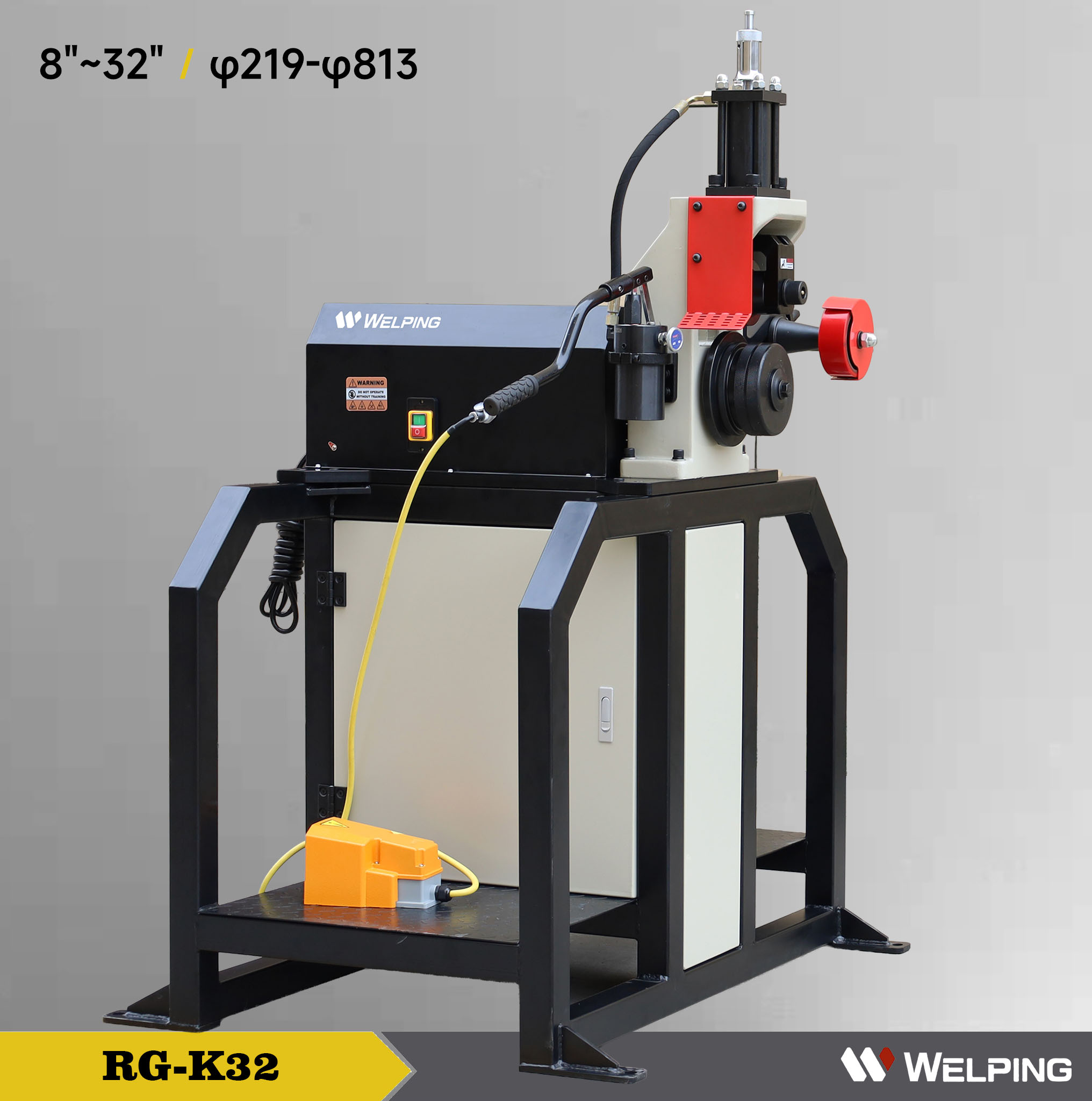

Industrial Steel Pipe Roll Groover 8″-32″ Roll Grooving Machine for Carbon Steel & Stainless Steel Pipes RG-K32
- Model: RG-K32
- Capacity: 1″~8″(DN25~DN200,Φ33~Φ219) SCH10/40 Steel Pipe
- 18″~32″(DN450~DN800,Φ457~Φ813) SCH10/20 Steel Pipe
- Max Wall thickness: 13mm
- Power: 2200W
- Motor: 220V/50Hz / 110V/60Hz
- Speed: 20R.P.M
- Gross Weight: 430kgs
- Packing Size: 125*115*165cm
- Warranty: 2 years
Industrial Steel Pipe Roll Groover 8″-32″ Roll Grooving Machine for Carbon Steel & Stainless Steel Pipes RG-K32
-
Model RG-K32 Roll Grooving Machine is designed to roll groove on steel pipes and Stainless Steel.from 8″-32″ (DN200~DN800) SCH10 to SCH40. Ideal for use in both workshops and job sites for streamlined mass fabrication. Its exceptional strength and durability make it a reliable choice for heavy-duty applications.
- Unique split-type hydraulic system features an independent pump and cylinder structure. The fully enclosed pump design eliminates the need for a breather hole, reducing hydraulic oil replacement frequency and extending pump lifespan

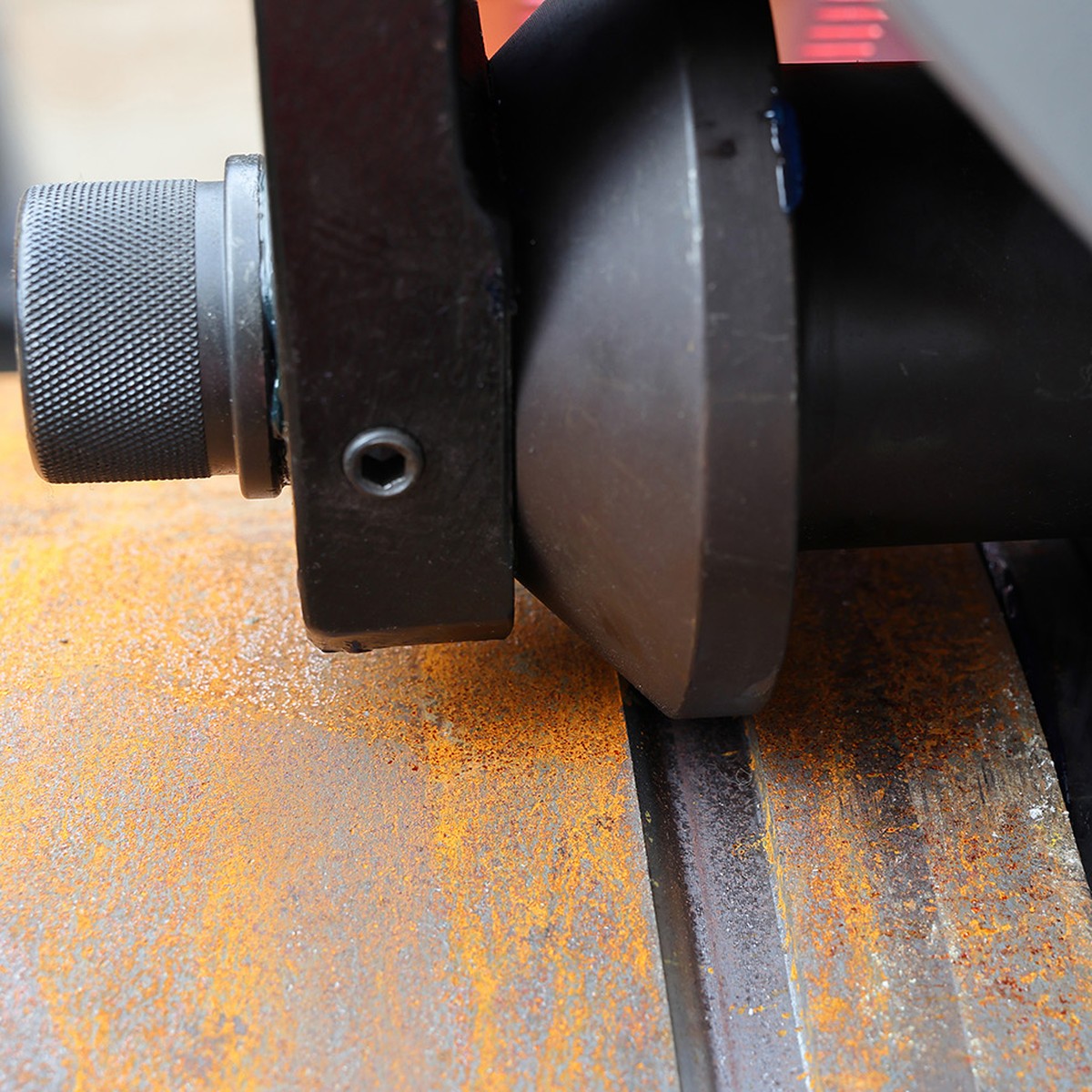

- The interlocking structure of groove roller and drive roller ensures precise control of the pipe sealing surface length
Pipe Roll Groovers Machine Product parameter:
|
Model
|
RG-K32
|
|
Suitable materials
|
Carbon Steel, Stainless Steel
|
|
Capacity
|
for 8″~16″(DN200~DN400,Φ219~Φ426) SCH10/40 Steel Pipe
18″~32″(DN450~DN800,Φ457~Φ813) SCH10/20 Steel Pipe |
|
Power supply
|
220V/110V
|
|
Frequency
|
50HZ /60HZ
|
|
Max wall thickness
|
13mm
|
|
Motor power
|
2200W
|
|
Output speed
|
20R.P.M
|
|
Packing gross weight
|
430kgs
|
|
Packing size
|
125*115*165cm
|

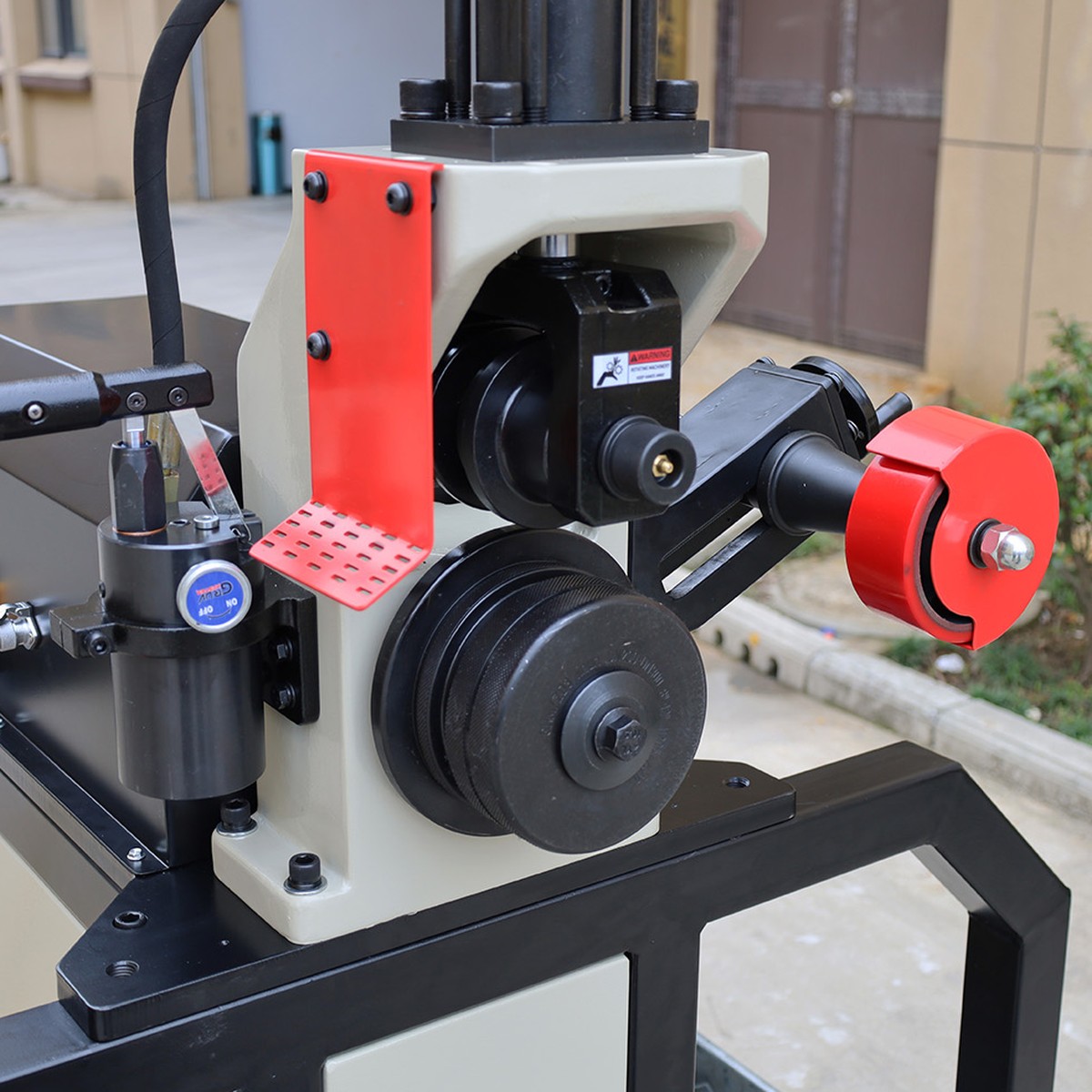

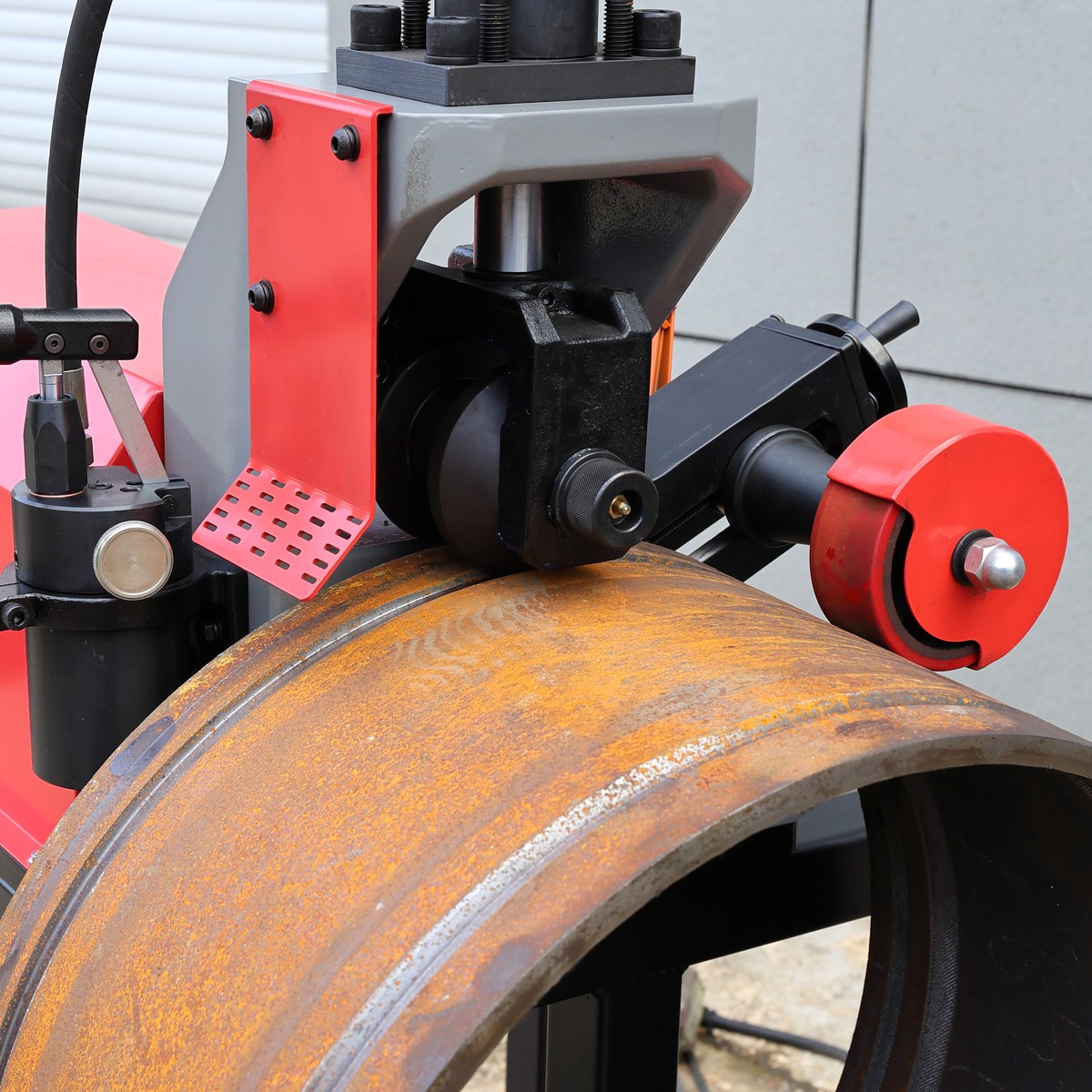

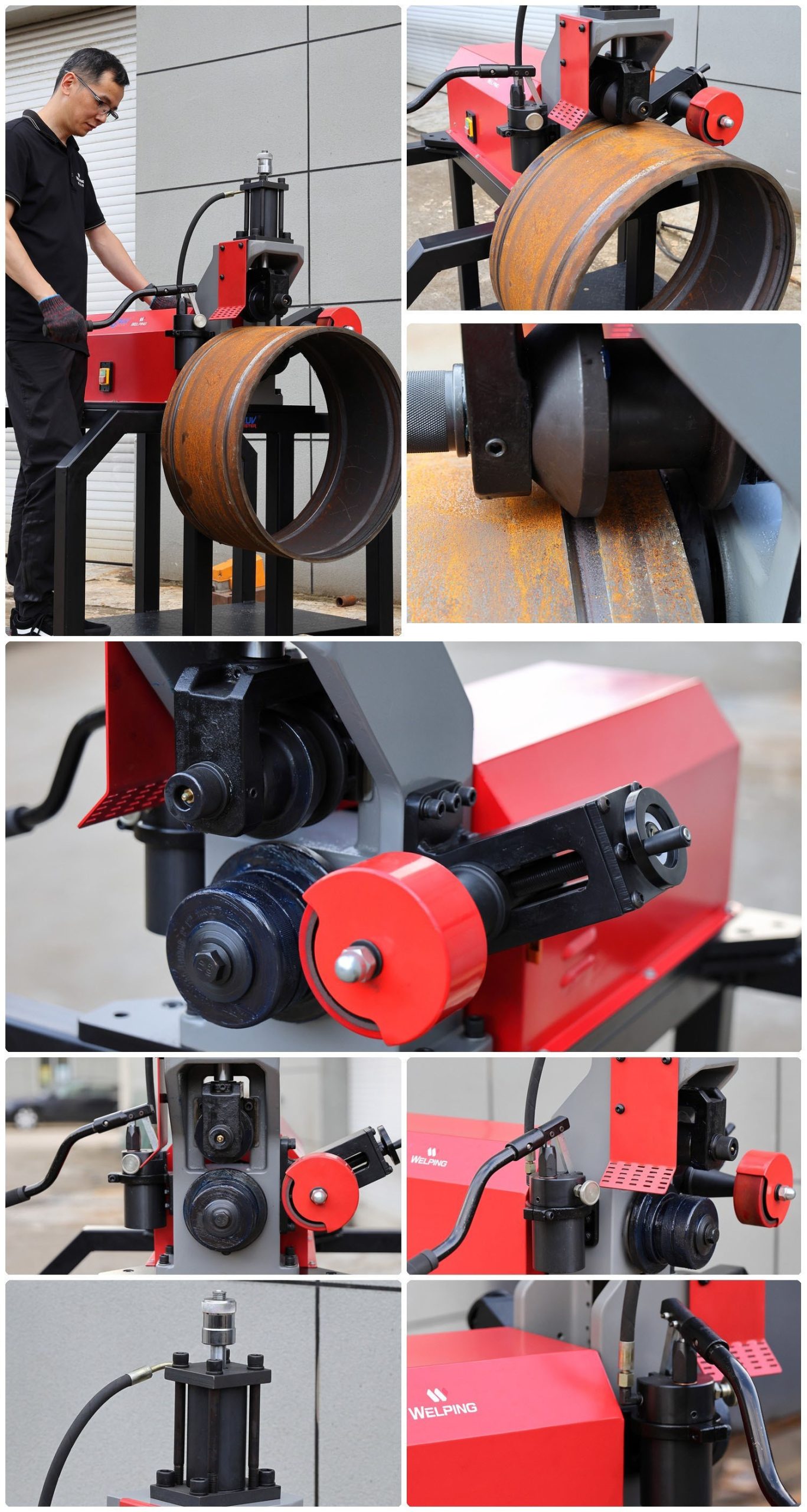

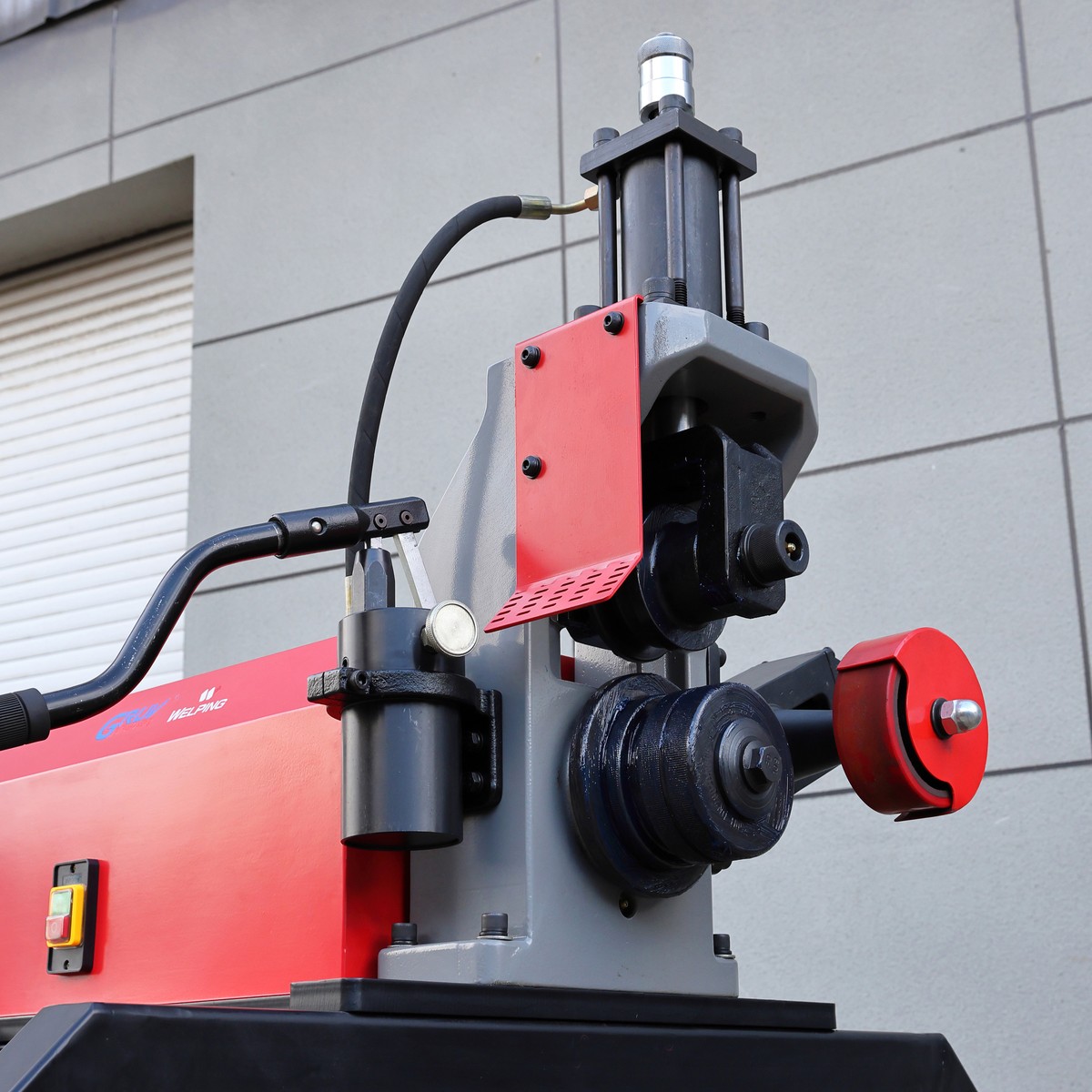

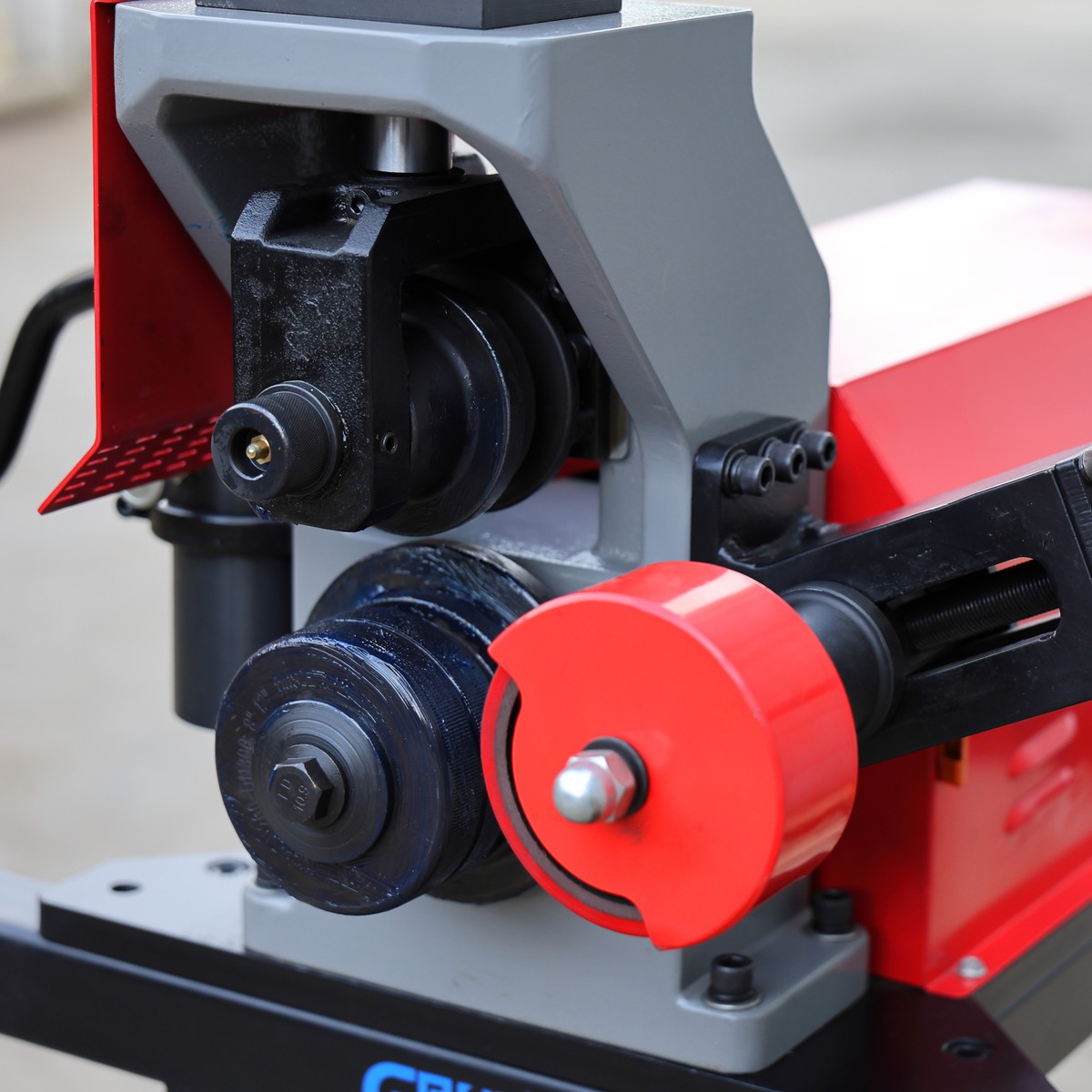

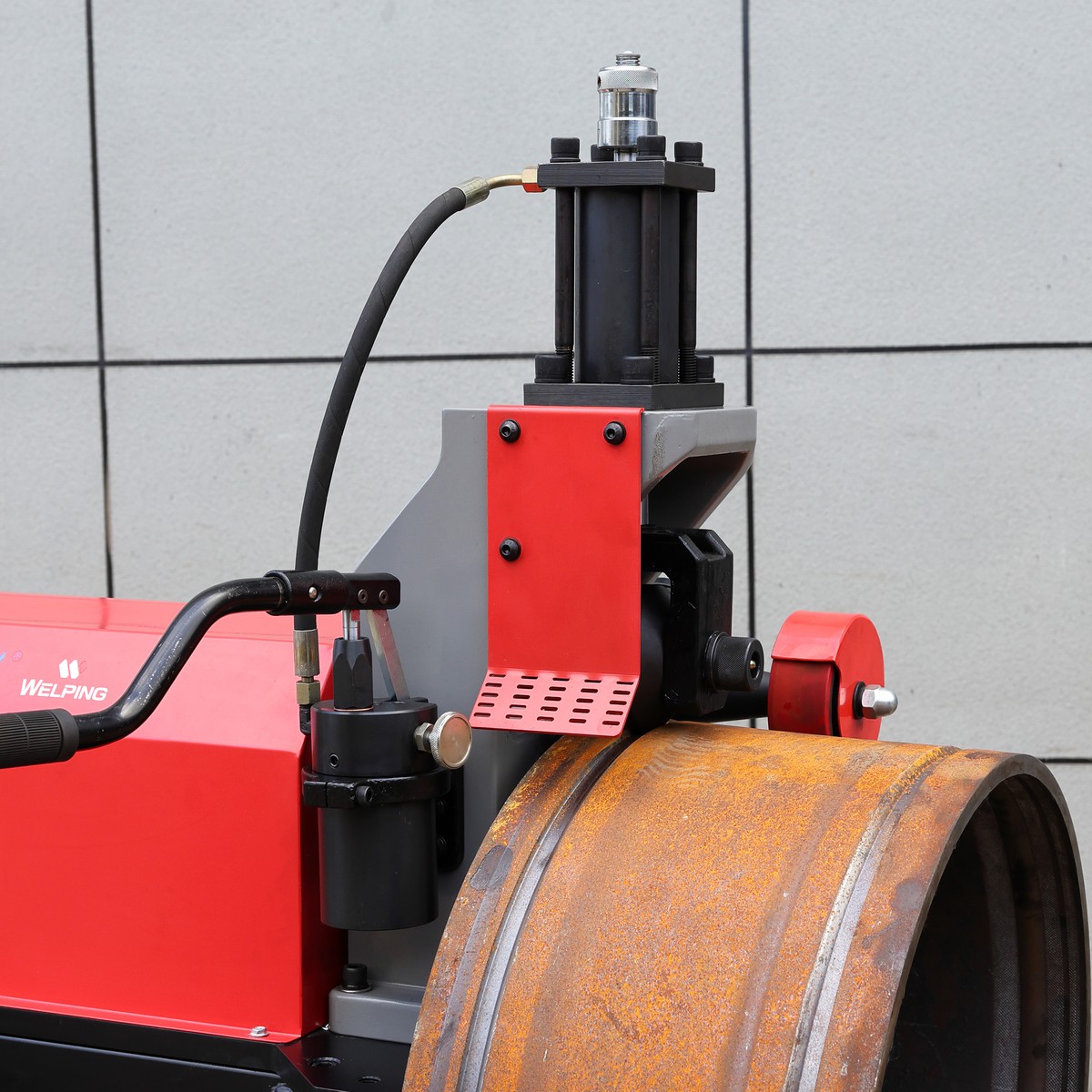

Heavy Duty 8 inch to 32 Inch Roll Groover Detail images:
hydraulic roll groover Standard parts:
|
Item Number
|
Description
|
Net weight
|
|
|
911087
|
Drive roller 8″~12″ (Φ219~Φ325)
|
3.5kg
|
|
|
911088
|
Drive roller 14″~16″ (Φ355~Φ426)
|
3.5kg
|
|
|
911089
|
Drive roller 18″~24″ (Φ457~Φ630)
|
3.5kg
|
|
|
911166
|
Drive roller 26″~32″ (Φ660~Φ810)
|
3.5kg
|
|
|
912029
|
Groove roller 8″~12″ ( Φ219~Φ325)
|
2.0kg
|
|
|
912030
|
Groove roller 14″~16″ (Φ355~Φ426)
|
2.0kg
|
|
|
912031
|
Groove roller 18″~24″ (Φ457~Φ630)
|
2.0kg
|
|
|
912065
|
Groove roller 26″~32″ (Φ660~Φ810)
|
2.0kg
|
|
|
998038
|
Pipe stand for 8″~32″ (Φ219~Φ813)
|
35kg
|
|

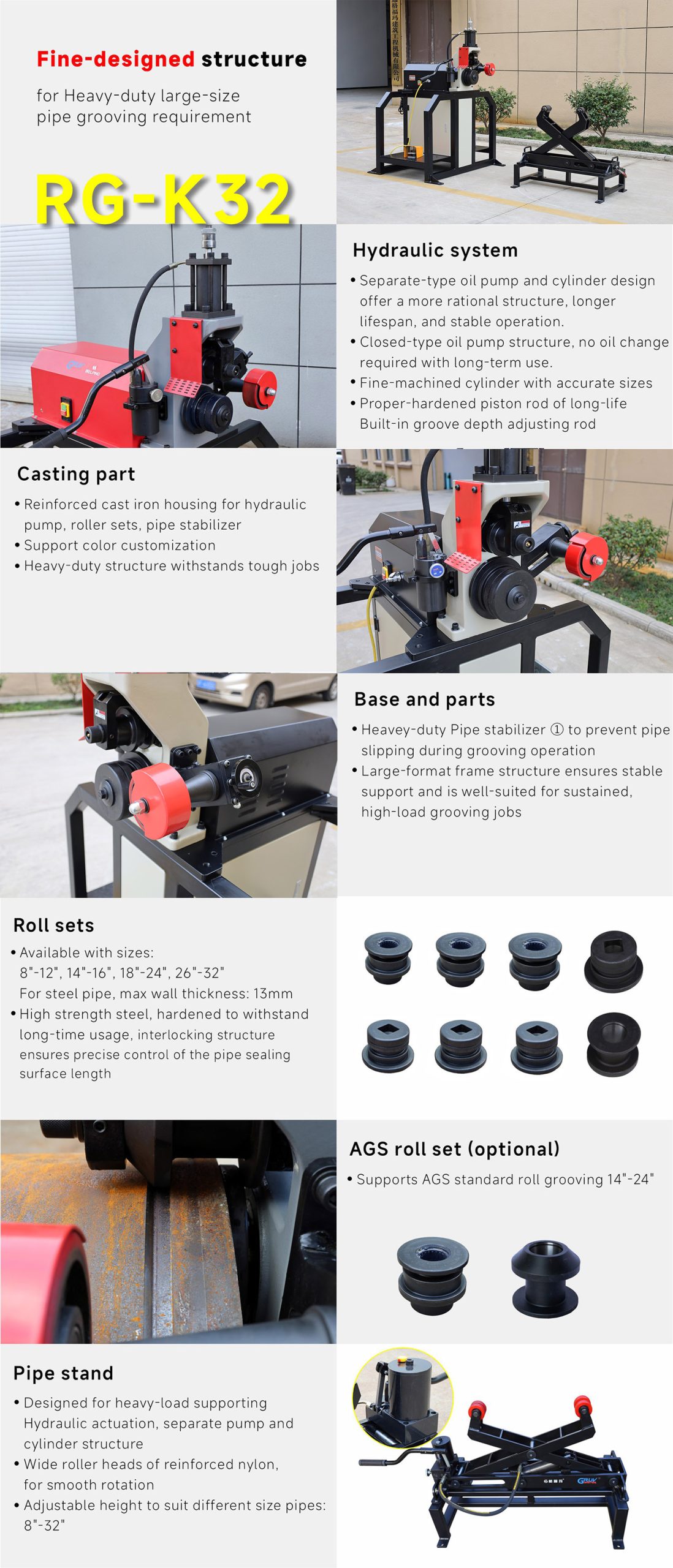

Roll Groove Machine Product Features:
